GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting

    Buy cheap GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting from wholesalers

    Buy cheap GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting from wholesalers
    • Buy cheap GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting from wholesalers

    GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting

    Ask Lasest Price
    Brand Name : YAOYU
    Model Number : GSB-200
    Certification : CE
    Price : $1200-2400
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets / month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

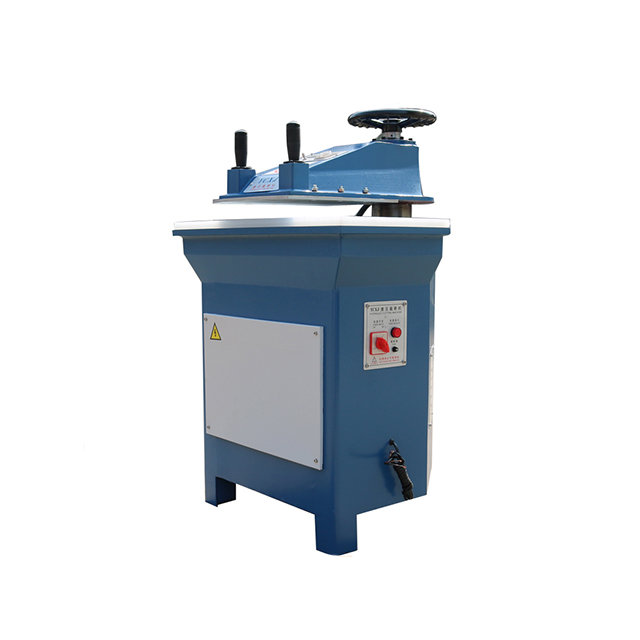

    GSB Series 20T Swing Arm Clicker Press For Cow Split Leather Glove Cutting

    Introduction


    Leather glove cutting machine is a kind of swing arm cutting machine which is one of the typical machines made by Yaoyu machinery. With it, you can cut leather shoe uppers, Eva soles, Eva slippers, leather insoles, sponge, isolated fiber, middle sole cardboard, canvas, non-woven fabrics, cotton and reinforcement fabrics and all kinds of non-metal materials through small cutting dies.

    More Machine Pictures



    Parameter


    1Model #GSB-120GSB-160GSB-200GSB-250
    2Cutting force12 Ton16 Ton20 Ton25 Ton
    3Working table size800*400mm900*410mm1000*500mm1000*500mm
    4Stroke adjustment range5-55mm5-75mm5-75mm5-75mm
    5Swing arm size330*400mm350*450mm350*500mm450*500mm
    6Hydraulic oil capacity32L38L50L70L
    7Motor power0.75KW1.1KW1.5KW1.5KW
    8Voltage380V 50HZ380V 50HZ380V 50HZ380V 50HZ
    9Machine size(mm)800*800*1250900*850*1350960*950*14301200*950*1430
    10Package size(mm)810*940*1450960*900*15001000*980*15001350*1000*1500
    11Net weight300kgs450kgs550kgs620kgs
    12Gross weight420kgs520kgs620kgs750kgs


    Finished cutting Products




    FAQ


    1) What's the warranty of the machine?

    12 months Warranty

    Life-long maintenance service for the machine

    2) What's your after-sales service?

    Engineer available to serve machines overseas;

    Email and calling service in working hours; 24 hours door to door in domestic.

    3) Can you test cutting our material by your machine for free?

    Yes, please contact us and send your material.

    4) How to decide how much ton pressure is needed?

    Normally one meter of knife line needs about 5 tons cutting pressure.

    please send your drawing or product photo, we can help you confirm.

    5) Can you make dies & PP boards?

    Yes, just send your drawing or requirements.

    6) Are you a factory or trading company?
    We are a factory and manufacturer

    7) Don't know which machine is suitable for your material?

    Please provide below information to us!

    Material:
    Max. material width:
    Max. material thickness:
    Max cutting length:
