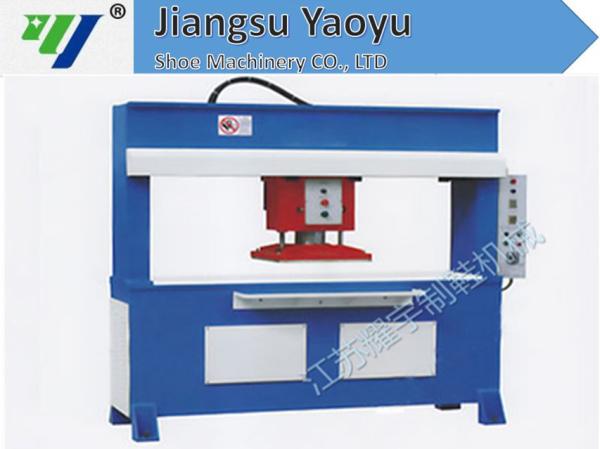

Efficiency Hydraulic Traveling-head Cutting Machine XCLL-2/25

Application:

This machine is suitable for cutting materials of single or multi-layer leather, rubber, plastic, plastic, textile, chemical fiber etc.

Advantage:

1. The machine is easy to operate, simple, low failure rate, strong cutting force and quick cutting speed.

2. The machine is a double oil cylinder and precise four-column automatic balancing connecting rod structure to ensure the same depth of each cutting position.

3. When the cutting plate is under pressure, the cutting blade is automatically cut, so that the cutting material has no size error at the top and bottom.

4. It is operated by hands with high safety.

Parameter:

Maximum impact force:250KN 300KN
The cutting speed:0.12m/s
Stroke range:0-120mm
The distance between the upper and lower plates:30-150mm
Upper pressure plate size:500x500mm
Lower work table size:1600x500mm
The motor power:2.2kw
Overall dimensions:2200x700x2050mm
The weight:1680kg

Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
