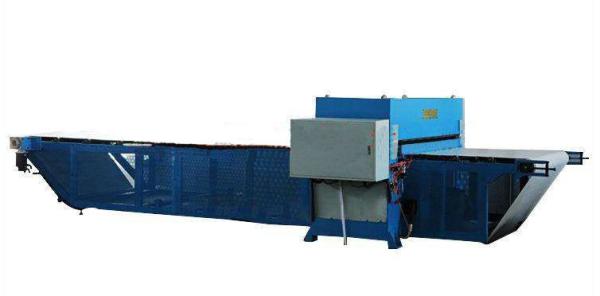

"Yaoyu" High Quality Conveyor Belt Automatic Hydraulic Die Cutting
Machine
Parameter:
Brands:Yaoyu
Model number:xclp3
Main motor power:5.5---15(kw)
The cutting force:50---300(T)
The highest speed:200(mm/s)
The minimum speed:180(mm/s)
The cutting area:4(mm2)
Table size:1800(mm)
Upper pressure plate to table distance:200(mm)
The range of stroke adjustment:180
Note:The company can customize the special specifications such as
cutting zone, feeding mode (single, bilateral automatic feeding)
according to customer's requirements.
Application:
This machine is suitable for foaming material, paperboard, textile,
plastic material, leather, rubber, packing material, floor
material, carpet, glass fiber, cork and other material knife
cutting.
Advantage:
1.This machine adopts the computer control system, the touchscreen
display screen, the operation is simple, quick and accurate.
2.Double oil cylinder, four-column automatic balance, connecting
rod structure, four-corner gear dead device.Ensure that each
cutting position is completely consistent on the conveyor belt.
3.It can automatically control the feeding device with single side
or double side, which can increase the production efficiency of the
whole machine by two to three times.
4.When the cutting plate is under pressure, the cutting blade is
automatically cut, so that the cutting material has no size error
at the top and bottom.
5.Special setting structure, with cutting knife and cutting height,
make the adjustment simple and accurate.
6.The central automatic lubrication system ensures the precision of
the machine and the machine durability.
